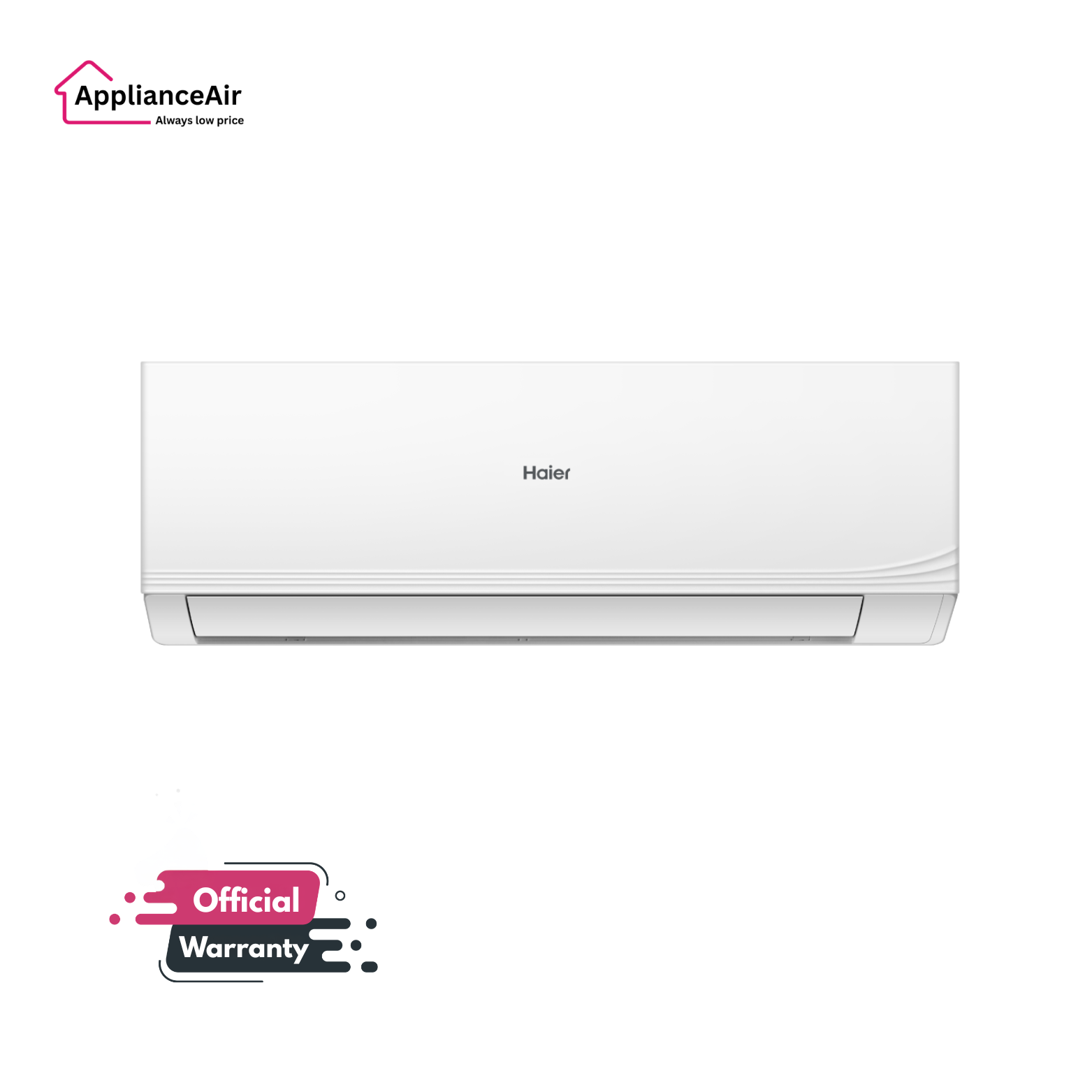

Model Name
-
Indoor:HSU-18AquaCool(FIX)(3D)(QB)
-
Outdoor: HSU-18KV24(FIX)
Capacity and Parameters
-
Type:Non-Inverter
-
Ton Range (TR):1.5 Ton
-
Capacity(BTU):18000
-
Rated Cooling Capacity (W):5275
-
Rated Heating Capacity (W):/
-
Rated Power Input Cooling (W):1800
-
Rated Power Input Heating (W):/
-
Max. Power input Cooling (W):2100
-
Max. Power input Heating (W):/
-
Energy Effeciency Ratio (EER):2.96
-
Coefficient of Performance (COP):/
-
Rated Running Current (A) Cooling:8.5
-
Rated Running Current (A) Heating:/
-
Max.Running Current (A) Cooling:11.5
-
Max.Running Current (A) Heating:/
-
Power supply (Ph,V,Hz):1/230/50HZ
-
Air Circulation (m3/h):800
-
Moisture Removal (10-3m3/h):/
-
Refrigerant Type:R32
-
Refrigerant Standard (Kg):0.750
-
Refrigerant Pipe Liquid Side Diameter (mm):6
-
Refrigerant Pipe Gas Side Diameter (mm):12
-
Compressor Type:Rotary
-
Evaporator/Condenser:100% 7mm Grooved Copper
-
Heat Exchangers:Golden Fin
Indoor
-
Indoor Net dimension (mm) W/D/H:875*217*307
-
Indoor Package dimension (mm) W/D/H:945*296*390
-
Indoor Net weight (kg):11.5
-
Indoor Gross weight (kg):13.5
-
Indoor Sound power level [dB(A)] Hi/Mid/Lo:46/42/38
Outdoor
-
Outdoor Net dimension (mm) W/D/H:800*280*553
-
Outdoor Package dimension (mm) W/D/H:908*405*627
-
Outdoor Net weight (kg):37.0
-
Outdoor Gross weight (kg):40.0
-
Outdoor Sound power level [dB(A)] Hi/Mid/Lo/So:55
Air Flow Direction
-
Up & Down:Auto
-
Left & Right:Auto
User Functions
-
Highly Efficient lonizer:Yes
-
Energy Saving:Yes
-
Dry Mode:Yes
-
Turbo Function:Yes
-
Auto Restart Function:Yes
-
Sleep Mode:Yes
-
Low Noise:Yes
-
Timer:Yes
-
Quick & Easy Installation:Yes
-
Child Lock:Yes
Warranty
-
Compressor (Yrs):5
-
Spare Parts and Components (Yrs):5
-
Service (Yrs):5
